Options:

STANDARD: 7 factory and 8 user presets. 3 parameter knobs, 3 program selection switches and a factory/user bank selection switch. The user presets are programmed using PICKIT2 (10€ aprox on eBay, Amazon, etc). See factory presets on table below.
STANDARD XLR: XLR connectors.

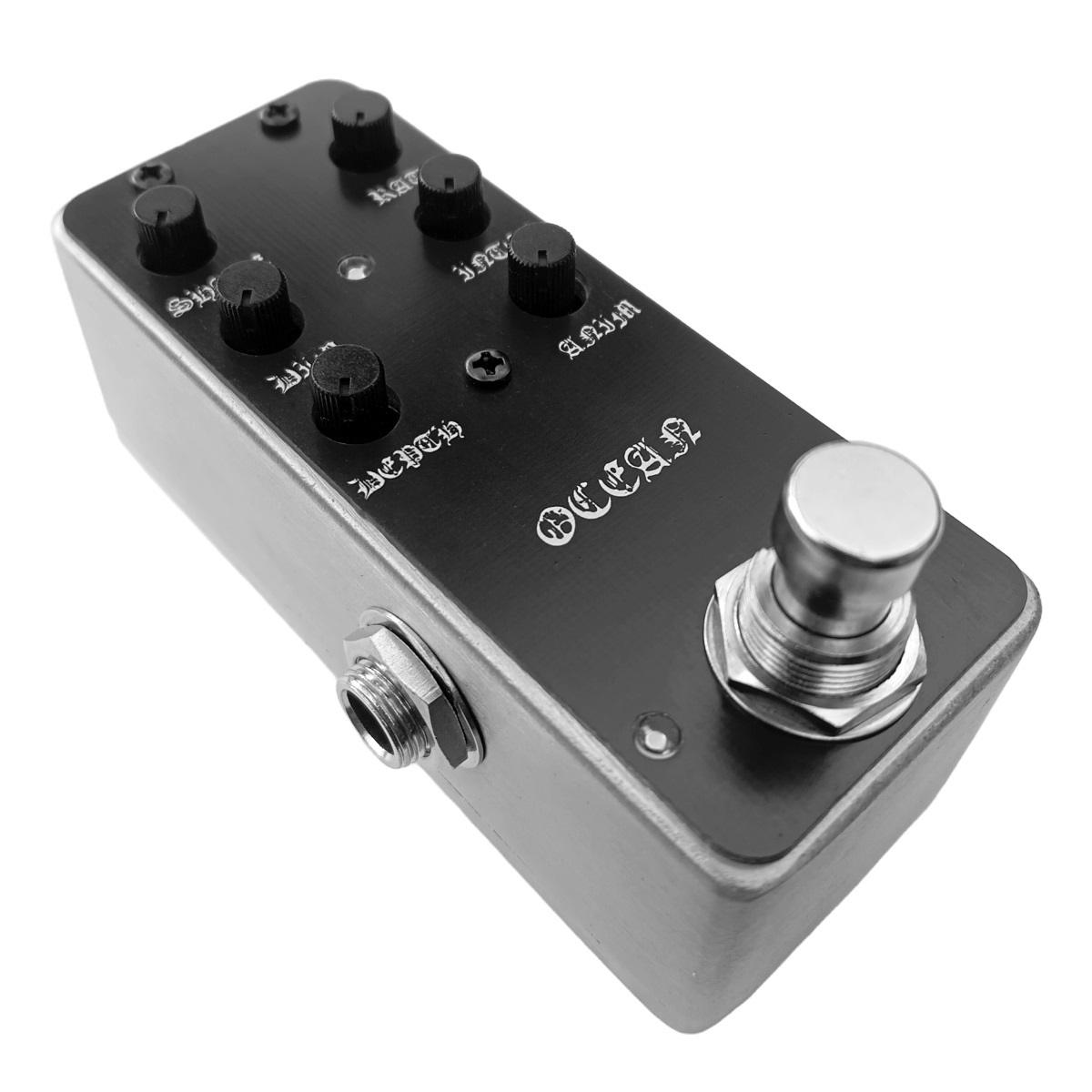

DUAL: This pedal can be built choosing two of this four FX: chorus+reverb, flanger+reverb, tremolo+reverb or delay. 5 parameter knobs, the two FX are selectable by footswitch.

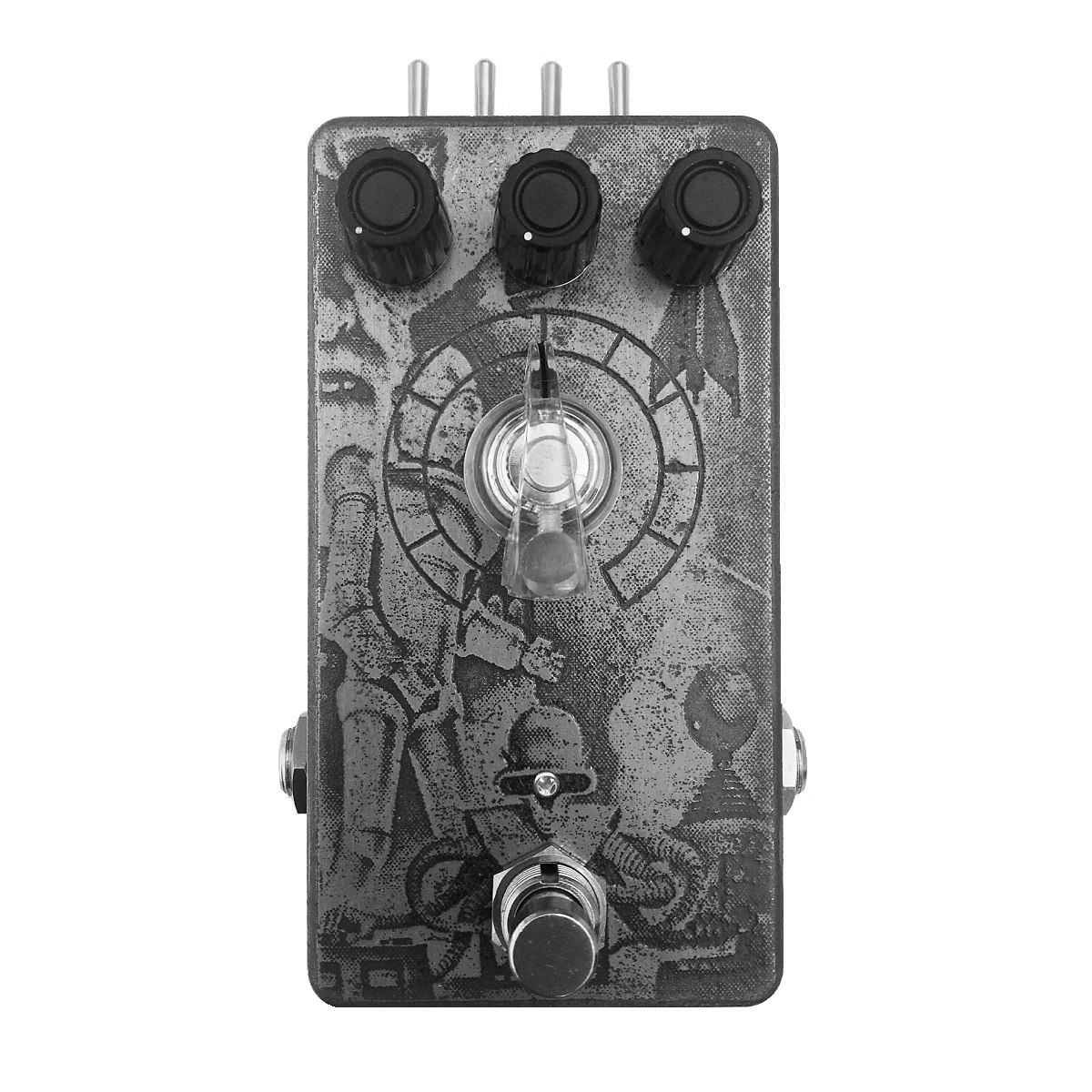

SATURN MINI: 7 factory presets. 3 parameter knobs, 3 program selection switches (see factory presets on table below). Input switch that activates the input jack or a built-in oscillator (one octave, sawtooth wave generator).
SATURN: 7 factory presets. 3 parameter knobs, 3 program selection switches (see factory presets on table below). Footswitch that activates the input jack or a built-in oscillator (one octave, sawtooth wave generator). With the LDR switch the oscilator pitch is modified by the ambient light.
SATURN 4: 7 factory presets and 8 user presets. 3 parameter knobs and oscillator volume control, 3 program selection switches (see factory presets on table below) and a factory/user bank selection switch. Footswitch that activates the input jack or 4 built-in oscillators (different octaves, sawtooth wave generators).
SATURN SYNTH: 7 factory presets. 3 parameter knobs, 3 program selection switches (see factory presets on table below). One octave of sawtooth wave generators activated by the keyboard. NO INPUT JACK.
KILLDOZER: Combination of a Saturn (MultiFX + signal generator) and a WAV/OGG sampler. The sampler is monophonic and plays WAV or OGG files (up to 44Khz/16 bits). 8 button triggers. The 16mb internal memory stores 3/6 minutes of WAV files (44Khz/22Khz 16 bits) or OGG files (x5-x10 longer).
Connectors: IN, OUT1 (MULTIFX to guitar amp), OUT2 (oscillator+sampler to PA), micro USB, SUPPLY.
Demo and trigger modes info below.
FX OFF, OSC OFF: OUT1 guitar bypassed, OUT2 sampler.
FX OFF, OSC ON: OUT1 guitar bypassed, OUT2 oscillator+sampler.
FX ON, OSC OFF: OUT1 guitar effect, OUT2 sampler.
FX ON, OSC ON: OUT1 oscillator, OUT2 oscillator+sampler.
KILLDOZER MINI: WAV/OGG sampler monophonic that plays WAV or OGG files (up to 44Khz/16 bits). 8 button triggers. The 16mb internal memory stores 3/6 minutes of WAV files (44Khz/22Khz 16 bits) or OGG files (x5-x10 longer).
Connectors: OUT, micro USB, SUPPLY.

Factory presets table:

STANDARD FACTORY PRESETS DEMO:

User presets transfering tutorial:
https://youtu.be/X-Fzg3a_or4

DUAL DEMO:

SATURN MINI DEMO (oscillator ON):

SATURN DEMO:

SATURN 4 DEMO:

SATURN SYNTH DEMO (32:45 sound test):

KILLDOZER DEMO:

Trigger modes:

Basic Trigger – name the file Tnn.WAV or Tnn.OGG (nn from 00 to 07) to have the audio file play when the matching button is pressed.
No audio gap between 22Khz WAV samples.

Hold Looping Trigger – name the file TnnHOLDL.WAV or .OGG to have the audio play only when the button is pressed, it will loop until the pin is released.
No audio gap between 11Khz WAV samples.

Latching Loop Trigger – name the file TnnLATCH.WAV or .OGG to have the audio start playing when the button is pressed momentarily, and repeats until the button is pressed again.
No audio gap between 11Khz WAV samples.

Play Next Trigger – have up to 10 files play one after the other by naming them TnnNEXT0.WAV thru TnnNEXT9.OGG. Will start with #0 and each one on every momentary button press until it gets through all of them, then go back to #0.
No audio gap between 11Khz WAV samples.

Play Random Trigger – just like the Play Next trigger, but will play up to 10 files in random order (TnnRAND0.OGG thru TnnRAND9.OGG) every time the button is pressed momentarily.
No audio gap between 11Khz WAV samples.

The OGG files always create audio gap between samples.
Not useful as a drum machine due to long press requirements (>100ms) and beacuse it’s not polyphonic.
Recommended setup: OGG files for basic trigger without loops. WAV 22KHz for basic trigger with loop (drum patterns), no latch or hold modes due to bad sound quality (11Khz).
