Additional information

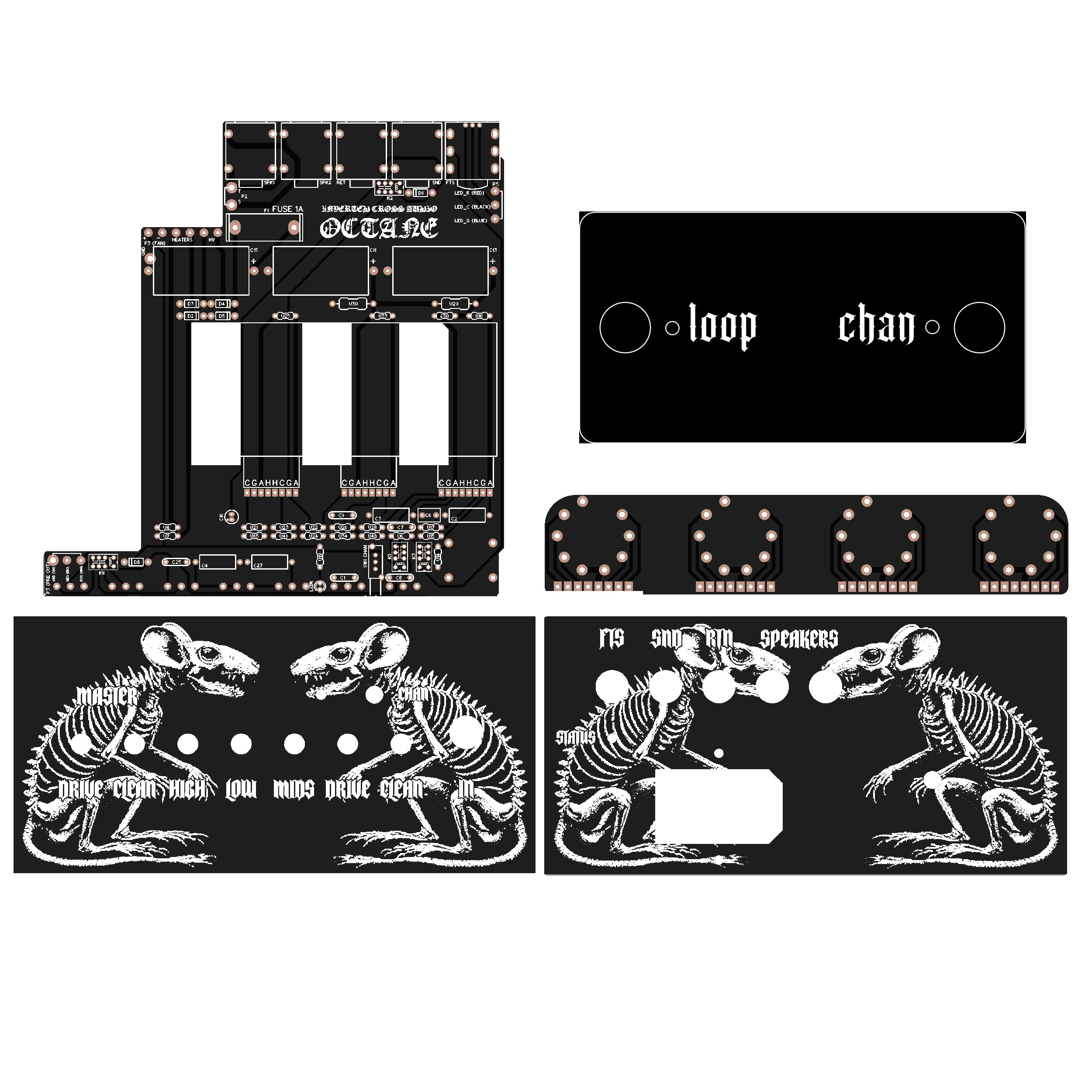

| . | 300W/230V (EU), 300W/125V (US), 700W/230V (EU), 700W/125V (US), CIRCUIT BOARDS AND FACEPLATES, CIRCUIT BOARDS |
|---|
OCTANE
Price range: 20€ through 800€

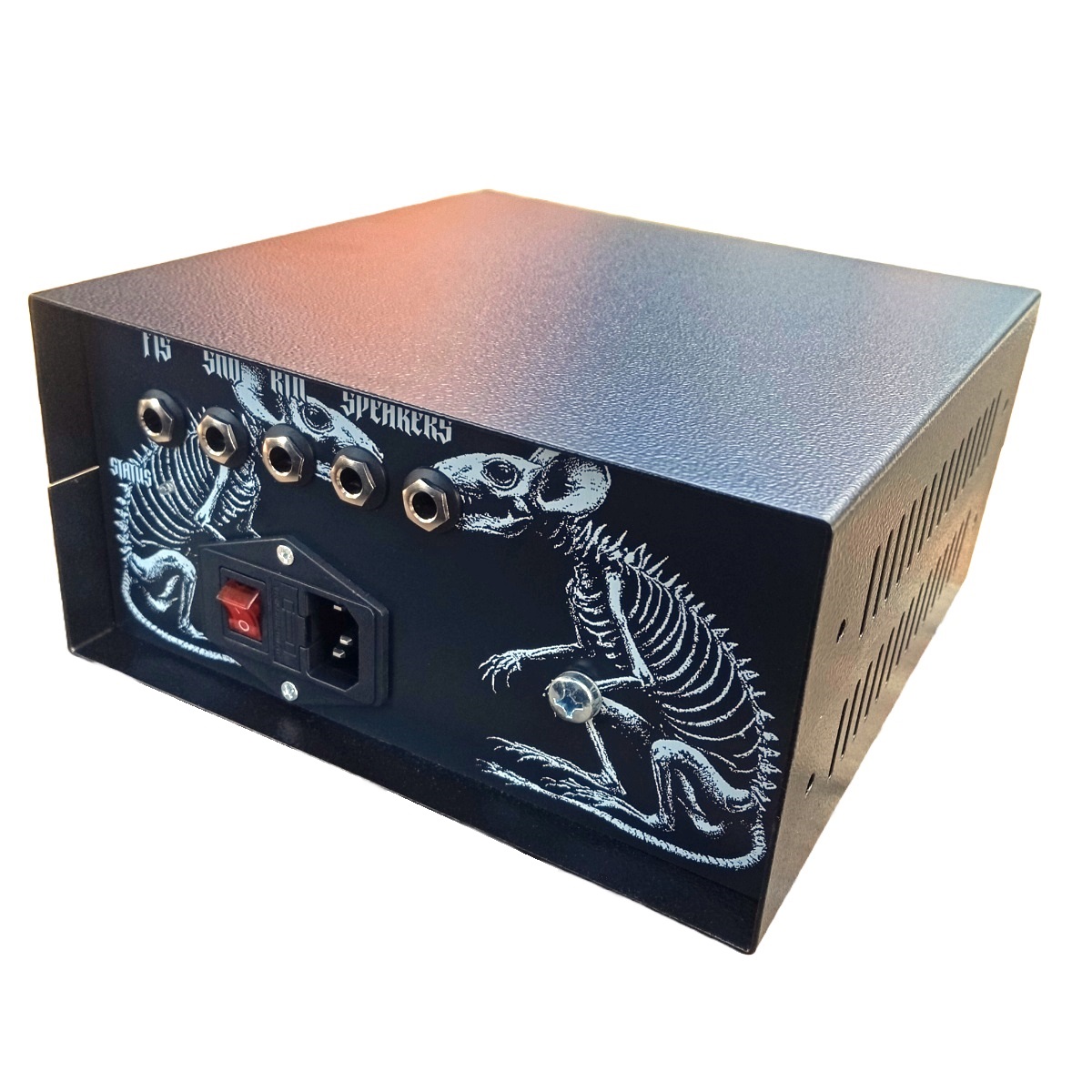

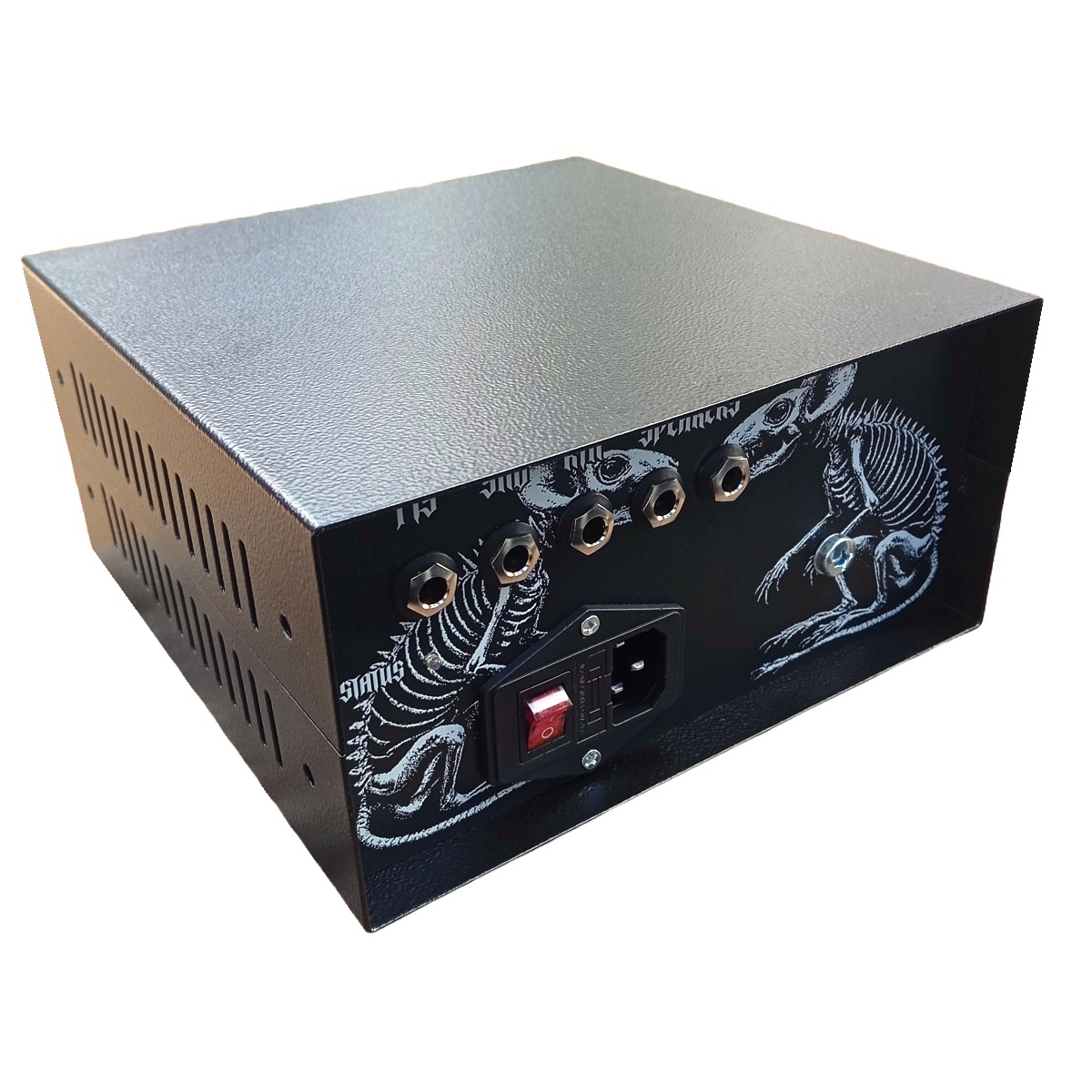

300W/700W medium gain hybrid amplifier based on Marshall JCM800.
The preamp has three 12AX7 tubes, two channels (clean and crunch) and FX loop (tube, not silicon parts).
The channels and fx loop can be activated by a footswitch (included).
300W @ 4 Ohms, 150W @ 8 Ohms, 75W @ 16 Ohms. 20x20x10cm (300W), 3kg.
700W @ 4 Ohms, 350W @ 8 Ohms, 175W @ 16 Ohms. 26x20x10cm (700W), 3kg.
It includes a plastic case with foam inside (35x28x14cm).

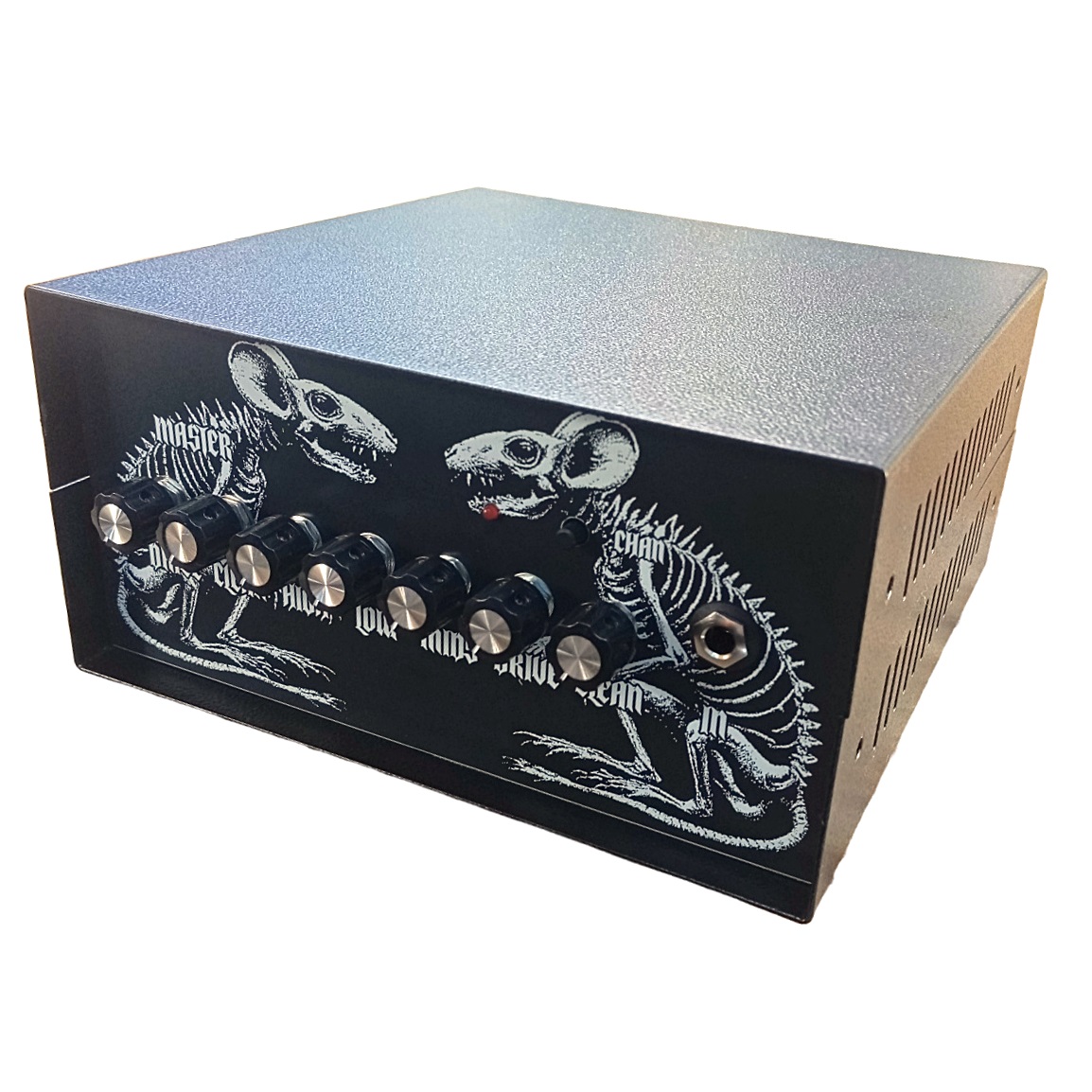

Controls: clean gain, drive gain, mids, low, high, clean master, drive master.

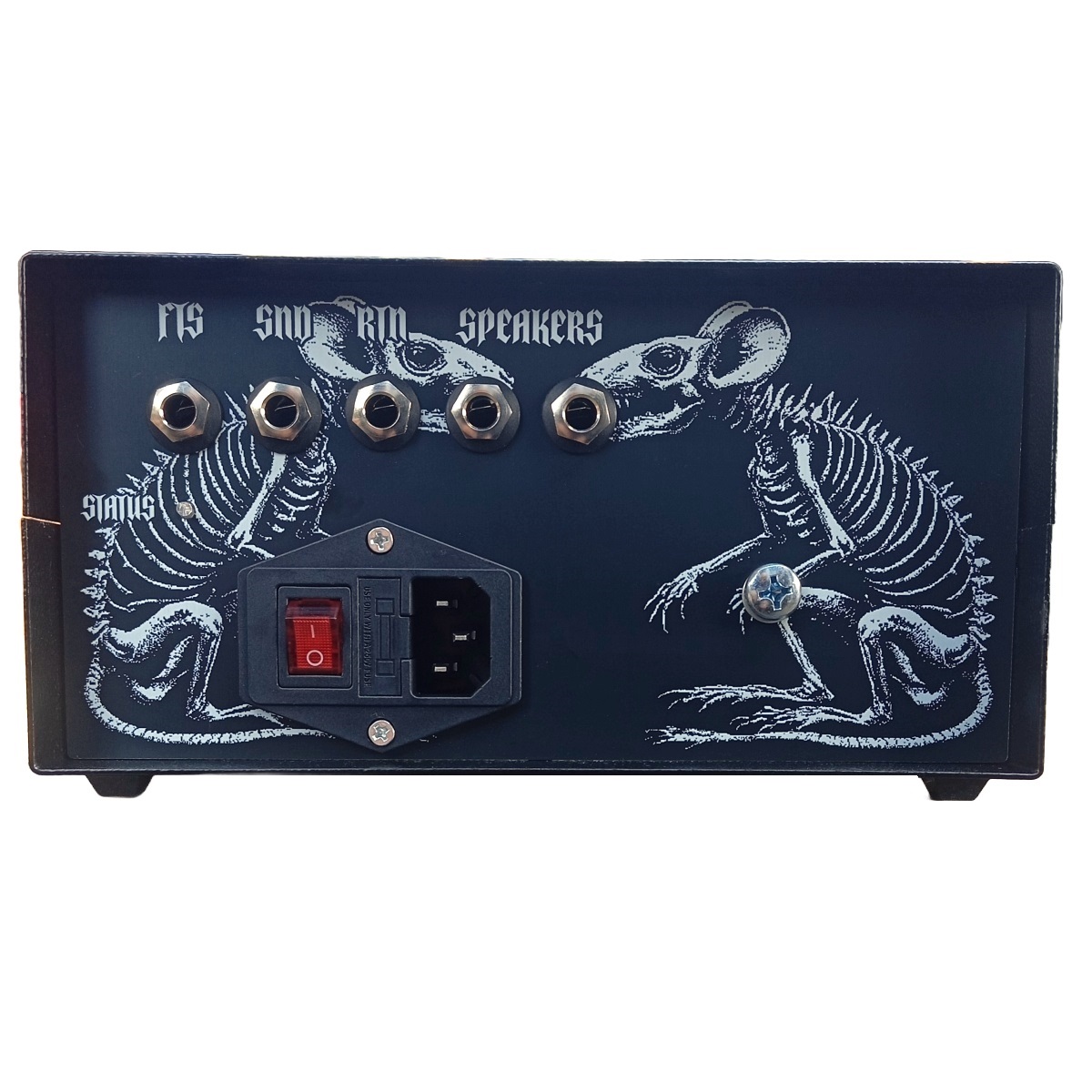

Connectors: in, footswitch, send, return, speakers (x2).
Leds: channel and status (power amp).
